Perforated Screen Sheet in Stainless Steel

Hengda supplies Perforated Screen in Stainless Steel for specific uses. The metal screen can be divided into three major types: Polisher screen, grader screen and Hammer Mill Strainers.

Polisher Screen:

Made of Perforated Screen in Stainless Steel + Black Shield. The metal sheet thickness is 2mm. The screen opening is Oblong Hole of 1.4x15 mm, plus emboss 3 mm shielding. The stainless shall be high carbon steel.

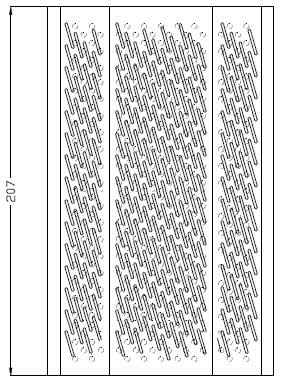

Stainless Steel Polisher Screen

Drawing Details

Hammer Mill Screen

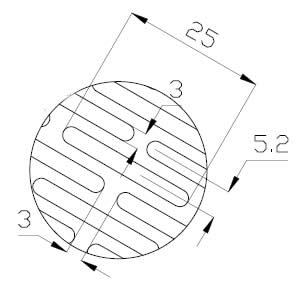

Stainless Steel 304 Perforated Sheet

Grader Screen: 3 Patterns:
Made of Perforated Screen in Stainless Steel 304. The sheet dimension is 870x785 mm. The metal plate thickness is 1 mm. The screen opening is Oblong Hole 2x10mm.

Perforated Screen in Stainless Steel 304. The perforated sheet dimension is 1090x695 mm. The metal plate thickness is 1 mm. The screening hole is Oblong with size 1.5x6mm.

Perforated Screen in Stainless Steel 304. The perforated sheet dimension is 1260x605 mm. The punched stainless plate thickness is 1 mm. The mesh opening is Oblong Hole of 0.85x6mm.

Hammer Mill Strain / Powder Mill Screen:
Made of Perforated Screen in Stainless Steel 304 or 202. The punched sheet dimension is 535x215 mm. The screen thickness is 1 mm with Oblong Hole 3x20mm. The perforated stainless sheet can be also 1.5mm. This type of perforated screen is used for corn milling, a hardened stainless steel material is used.
