Punched Slotted Tube

Slotted metal tubes are fabricated from perforated sheets with slot holes/openings punched with the pre-made dies or models. Then the sheets are welded to form a cylinder or pipe. The pattern of the opening is determined by the shape of the die. In perforating and slotting, die making accounts greatly. Hengda has first-class digital controlled CNC punching press and an extensive range of dies to provide stainless steel and aluminum slotted perforated tubing with high opening precisions.

Punching Dies:
The die for punching slotted pipe can vary in the width, length, patterns to meet customers’ requirements. The ends of the slot can be round or square or custom made.
Metal Materials:
The materials most frequently used to production these metal pipes and tubes are stainless steel AISI 304-316, stainless steel, aluminium alloy and any other material suitable for perforation and slotting.

About the Slotted Hole Patterns:
Slotted Holes are elongated holes with round or square ends. They are available from stock in either a side staggered or a straight line pattern in plain steel. Others gauges, hole sizes, patterns and materials are available by special order.

Punched sheets and pipes offer more flexibility and rigidity to arrange store display, giving a fresh and elegant look with flexibility in quality.

Features:
PERFORATED SLOTTED PIPES PROVIDES:
•High accurate - pitch accuracy within +- 0.2 mm over a length of 1000mm
•Dimple free/burr free
•Variable Pitch possible
•Punching on all sides of tubes possible
•Can be supplied in powder coated / chrome platted condition

SPECIFICATIONS
•Material – Mild steel, stainless steel, aluminum, brass
•Tube Shapes - Square , Rectangular, Round Oval,
•Length- Maximum 5 Mtrs
•>Outside Dimension - Max - 80mm, Min - 25 mm
•Thickness Range - 0.8 to 2.5 mm
•Pitch / Slot Size - As per customer requirement.

APPLICATIONS
•Supermarket Shelving
•Storage System
•Display System
•Water treatment screen
•Filter Tubes and Screen
•Others

OPENING PATTERNS
Round, square, straight line, parallel, crisscross, bridge, spiral and other patterns.

SLOTTED AND PERFORATED LINER TUBES

Bridge slotted tube screen in stainless steel
Uses: building tunnels at an international airport project
Sheet technical data:
Casing Stainless Steel tubes, Diameter ca. 250 mm, wall thickness ca. 3mm, 108m
Casing Stainless Steel tubes, Diameter ca. 350 mm, wall thickness ca. 4mm, 84m

Bridge slotted screen in stainless steel: Diameter ca. 250, slots ca. 0,8mm, wall thickness ca. 3mm, 1200m
Bridge slotted screen in stainless steel: Diameter ca. 350, slots ca. 0,8mm: wall thickness ca. 4mm, 300m.

Slotted Liner Tubes
Uses: for Dubai water construction projects

2-7/8" SMLS tubing,6.4 PPF, L-80, VAM TOP CONNECTION, R-2, 12 SLOTS PER ROW AROUND THE TUBE, 48 SLOTS IN 1 FT, ESTIMATED OPENING AREA: 4 SQUERED INCH/FT

3-1/2" Seamless Pipe / tubing, 9.2 PPF, L-80, VAM CONNECTION,15 SLOTS PER ROW AROUND THE TUBE, 60 SLOTS IN 1 FT, ESTIMATED OPENING AREA: 5 SQUERED INCH/FT

Slotted Liner General Specifications: Slot width: 0.04" (1000 MICRON), Slot length: 2" +/- ¼" SLOT SHAPE: STAGGERED PA TfERN, 4 ROWS/Ff SLOT PROFILE: STRAIGHT CUT 2 ET LEFT BLANK AT EACH END

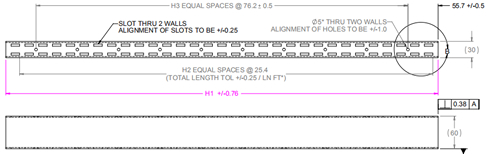

304 Stainless Steel Slotted Tube, 1.9 (14GA), Post Tube

304 SS Slotted Tube

Refer to PDF for Details.


S S 316 L Slotted Tubes
Uses:Filteration in pharmaceutical and chemical process
Details are as under -

Tube O D - 110 mm
No of Support Profiles - 24 Nos
Rating - 30, 50,100 & 500 Microns
M O C - S S 316 L
Tube length: 1500mm


Tube O D - 85 mm
Slot Opening - 0.5 mm
Rating - 500 Micron
Surface Wire Width - 1 Or 1.5
M O C - S S 316 L
Tube length: 1000 mm

PHOTOES AND PROJECTS

Perforated Tube for Well Screen Projects:

Sand control screen tube of stainless steel perforated round mesh plate
Filter tube, precise perforated casing tube for oil well sand control, material ss 316, 304,OD:50 to 200mm, Pipe Wall thickness:≤16mm

Slotted Liner for Well Screen Projects

Stainless Steel Water Well Screen of Slotted Tube
Stainless Steel Slotted Liner Tube for water wells screen, pattern: line, staggered, multi staggered, material: stainless steel 304, 316

Bridge Slotted Screen for Reservoirs Construction Projects

Stainless Steel 316L Well Screen Liners for Deep Wells
Perforated bridge slot filter cylinder for heavy oil mineral screening, sand control, 300 micron, material: stainless steel, alloy or galvanized.

Pre-Drilled Metal Tube for Filter Projects:

SS Mesh Screen Fabricated Pipe
Stainless Steel 316L Punched Metal Pipe with Staggered Round Hole Pattern

Stainless Steel Mesh Screen Liner Tubing

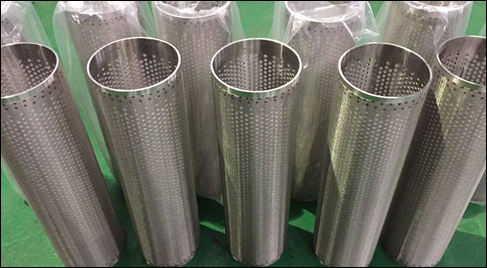

Stainless steel perforated tubing, liner tube for wire mesh pleated candle filter elements

Around 1000mm perforated tube with OD 85mm

CUSTOM SERVICES

Sheets for pipe processing:
We are solution provider in filtration and we fabricate tubes using slotted and perforated sheets, sintered mesh plates & wire mesh sheets.
Materials can be S S 316, SS 316 L as well as Hastalloy, galvanized steel.
Please let us know about your applications and detail requirements.

Punching Press Slotted Pipe Perforating Machine

Slotted Tube Material Slot Holes
