Expanded Steel Mesh Sheet Galvanized for Architectural Mesh, Flooring, Building Material and Machine Guards
Expanded metal steel sheet is a versatile product made by slitting and stretching a solid steel sheet to create a diamond-shaped or other geometric pattern. It offers a lightweight, structurally sound and open framework which can be used in a variety of applications.
Characteristics of Expanded Steel Metal Mesh Sheet:
- Open Design: This design allows for the passage of air, light, heat, and sound, making it ideal for applications such as ventilation and filtration.
- Strength: Even with its open design, expanded metal steel remains strong and durable.
- Versatility: Expanded metal steel is suitable for architectural, industrial, and decorative applications.
- Lightweight: The process of expansion stretches the metal sheet, which increases its surface area without a significant addition to its weight.
- Cost-Effective: Expanded metal steel provides coverage for large areas without incurring the cost of solid metals.
- Skid Resistant: Its raised surface ensures a firm grip, especially in walking applications.
- Easily Customizable: Expanded metal steel can be effortlessly cut or bent to match specific applications.
Applications:
- Architectural: Facades, cladding, sunscreens, decorative features, and partitions.
- Industrial: Platforms, walkways, stair treads, barriers, fencing, and machine guards.
- Filtration: Screens for air, liquid, or solid separation.
- Security: Window guards, barriers, and fencing.
- Decorative: Furniture, wall art, and room dividers.
- Agricultural: Animal cages, feeding racks, and fences.
Types:
- Standard Expanded Steel Mesh: This type features diamond patterns that are angled slightly relative to the plane of the sheet.
- Flattened Expanded Metal Steel: This is produced by rolling standard expanded metal, which smooths out the sharp edges and flattens the sheet.
- Architectural Expanded Steel Mesh: Specifically designed for decorative applications, it often showcases unique patterns and finer details.
- Micro-Mesh: This is an extremely fine mesh, ideal for filtration and other sensitive applications.
Illustrative Specifications:
Expanded Steel Metal Mesh
MS-6000 standard steel (CRS 1008/1010) with CPM528-L pattern.
Material to be 2” wide coil or 2”x2.5” blanks.
Expanded Metal Steel Mesh for Plaster Drywall Lathing
Expanded steel mesh can be used to form a key for plaster and is ideal for suspended ceilings and partitions in buildings. The sheets are most suitable for encasing steel columns and beams in order to help their fire protection qualities.
The sheets are manufactured from 26 guage galvanised mild steel to BS2989: Grade Z2 G275, or austenitic stainless steel.
Expanded metal steel sheet conform to IS:412, galvanized (having minimum zinc coating of 250 g/m2) and shall weigh minimum 1.84 Kg/m2. Size of the mesh shall be 4.5x13.5mm.
Material – Mild Steel and Stainless Steel.
Size of Expanded Metal Steel – 8ft x 4ft / 10ftx 4ft / 12ft x 4ft.
Both Raised Type and Flattened Type.

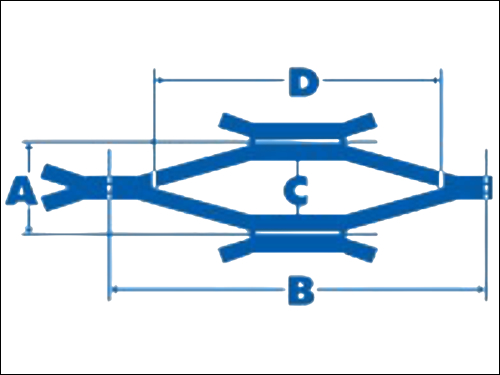

C/C “A” |
C/C “B” |
Opening (Width) “C” |
Opening (Length) “D” |
Strand Size (Width) |
Strand Size (Thick) |
Overall Thickness |
Mesh Size |
23.45 |
53.85 |
14.30 |
42.87 |
|
3mm |
3mm |
4ft X 8ft |

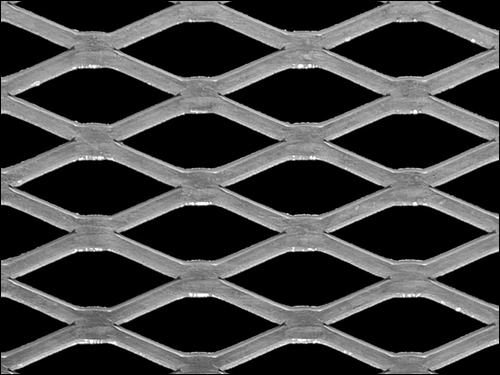

Expanded Steel Mesh Sheet Hot Dipped Galvanized
Finish – Hot Dip Galvanized
Self Colour
