Bridge Slotted Sheet in Stainless Steel and Carbon Steel

Bridge Slotted Steel Sheet is a specialized perforated sheet made of carbon or stainless steel materials by precision punching in staggered bridge-like slot perforations.
Materials: Carbon steel and stainless steel 304, 304L, 316.

Slot Style: Staggered bridge-slot perforations.

Bridge slot perforated sheet offers Unique Features when compared with other perforated metals:
High mechanical strength
Anti-Clogging
Cost-Effective
High percentage infiltration area
Optimal sand/gravel retention
Customised specifications available
Easy processing and forming into tubes

Bridge Slotted Perforated Sheet Applications
Water wells screens;
Drainage control;
Industrial screening;
Air vent grille;
Other filtration uses.

Thickness: 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm, other sizes.

Bridged Slot Steel Sheet

Bridged slot steel sheet for air flow
Sheet size: 2500mmx1250mm x 3.0mm sheets.
Perforation pattern and sizing:
Bridge slot perforation.
Material: 3.0 mm steel DD11.
Pattern BRG12.5x11Z56.2x45

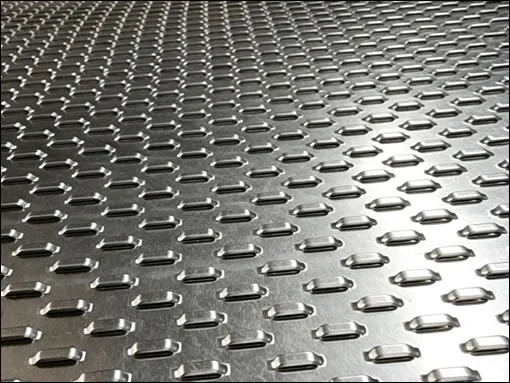

Bridge Perforated Plate - SS304 Slot 0.8mm x 3mm

Bridge slotted sheet in stainless steel:
Slots 0,8mm
Thickness: 3mm
Plates bended length: 1.5 m

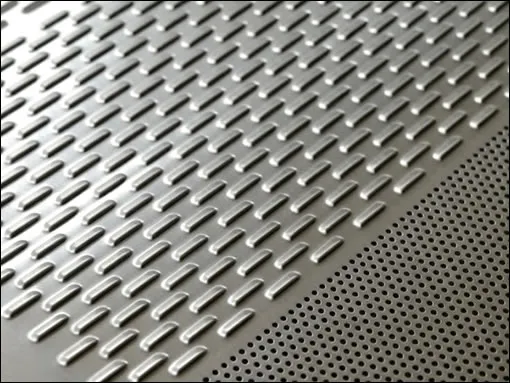

Bridge Slot Perforated Stainless Steel Sheet - 0.8mm x4mm

Material: Stainless steel 304L
Slots: 0.8mm
Thickness: 4mm

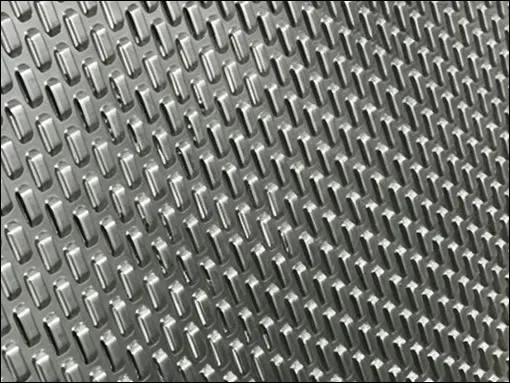

Bridge Slotted Steel Sheet in Carbon Steel

Material: Carbón steel hot rolled Q235jR.
Total Height: 5 mm

16 Gauge Slotted Perforated Metal
6.350 x 38.100 mm slot
Every third bridge 4.763 mm wide
Other bridges 2.381 mm
Open area: 67% of sheets
Steel material: 16 gauge steel sheet
